CPVC & PVC-U True Union Ball Valve With Socket

Place of Origin: Zhejiang,China (Mainland)
Material: 100% new materials PP-R
Brand Name: CXM
Specification: DN15 ~ DN100
Length: As customers' request
Thickness: International standard
Standard: DIN8077/8078,GB/T18742
Working Medium: Cold and Hot Water
Working Pressure: PN10/PN16
Connector: Solvent adhesive
Color: Grey, White,Blue
MOQ: 10 cartons
Export Area: All over the world
Trade Term: FOB,CFR
Payment Term: L/C,T/T
Means of transport: Land,Ocean,Air
Delivery Time: Within 30 Days

Quantity:
  • CXM or OEM

CPVC & PVC-U True Union Ball Valve With Socket

03-09

***INTRODUCTION:

High quality valves were supplied by our company, which valves made by qualified raw materials, were produced under strict production flow control and must be passed by strict test of quality.

Quality inspection for key components are carried out,including body processing, valve core processing,and component surface fine machining processing. Technical test fixtures are designed by ourselves, and used to check the function for valves one by one.

***FEATURES OF CPVC/PVC-U VALVES:

◆Light Weight:

The proportion is only 1/7 of the metal valves, It is convenient for handling and operation, which can save lots of manpower and installation time.

◆No Public Hazard:

The formula is environmental protection. The material is steady, without second contamination.

◆Corrosion-resistant:

With high chemical stability,plastic valves will not contaminate the water in the piping networks and can maintain the sanitation and efficiency of system. They are available for water supply transport and chemical industrial facilities.

◆Abrasion Resistance:

That has higher abrasion resistance than other material valves, so the service life can be longer.

◆Attractive Appearance:

Smooth internal and external wall, low flow-resistant, mild color and elegant appearance.

◆Easy and Reliable Installation:

It adopot specified solvent adhesive for conjunction, it is convenient and quick for operating and interface can offer higher pressure resistance than that of pipe. That is safe and reliable.

***FIELDS OF CPVC/PVC-U VALVES:

Plastic valves for cold and hot water transport in residential and commercial buildings,hospitals,hotels,offices,school buildings,shipbuildings etc.

Plastic valves for swimming pools facilities

Plastic valves for waste water treatment

Plastic valves for aquaculture

Plastic valves for irrigation

Plastic valves for other industrial applications

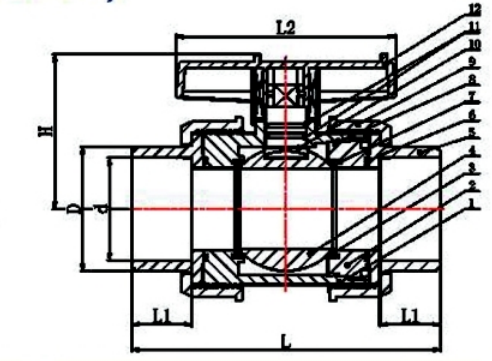

***TECHNOLOGY DATA OF CPVC/PVC-U VALVES:

}CE)A$ZC]SESU417DVQ@8DQ
NO.
PART
MATERIAL
QTY
NO.
PART
MATERIAL
QTY
1
body
PVC
1
7
O-ring
NBR
2
2
seat carrier
PVC
1
8
O-ring
NBR
1
3
seat seal
PTFE
2
9
union nut
PVC
2
4
ball
PVC
1
10
stem
PVC
1
5
end connector
PVC
2
11
stem o-ring
NBR
2
6
O-ring
NBR
2
12
handle
ABS
1
size
GB
ANSI
JIS
DIN
D
H
L2
L1
L
mm
d
d
d
d
mm
mm
mm
mm
mm
15(1/2")
20 21.34 22 20 29 53 64 21 110
20(3/4")
25 26.67 26 25 36 59 79 24.5 127
25(1")
32 33.40 32 32 43 68 84 27.5 142
32(11/4")
40 42.16 38 40 53 79 96 29.5 161
40(11/2")
50 48.26 48 50 62.5 89 116 35 176
50(2")
63 60.32 60 63 80.5 106 133 43 213
65(21/2")
75 73.02 76 75 88 113.5 160 44 225
80(3") 90 88.90 89 90 108 148 200 52 265
100(4")
110 114.30 114 110 208 169 240 57 306
