V02
CXM or OEM or without brand
PVC Compact Thread Ball Valve 02
INTRODUCTION
High quality valves are supplied by DingDang, which valves made by qualified raw materials, were produced under strict production fow control and must be passed by strict test of quality.
Quality inspection for key componenets are carried out,including body processing,valve core processing, ad component surface fine machining processing, Technical test fixtures are designed by ourselves, and used to check the function for valves one by one.
FEATURES OF PVC Compact Thread Ball Valve V02
●Light weight:
The proportion is only 1/7 of the metal valves, It is convenient for handling and operation, which can save lots of manpower and
installation time.
●No public hazard:
The formula is environmental protction. The material is steady, without second contamination.
●Corrosion-resistant:
With high chemical stability,plastic valves will not contaminate the water in the piping networks and can maintain the sanitation
and efficiency of system. They are available for water supply transport and chemical industrial facilities.
●Abrasion resistance:
That has higher abrasion resistance than other material valves,so the service life can be longer.
●Attractive apperrance
Smooth internal and external wall,low flow-resistant,mild color and elegant appearance.
●Easy and reliable installation:
It adopts specified solvent adhesive for conjunction,it is convenient and quick for operating and interface can offer higher pressure resistance than that of pipe. That is safe and reliable.

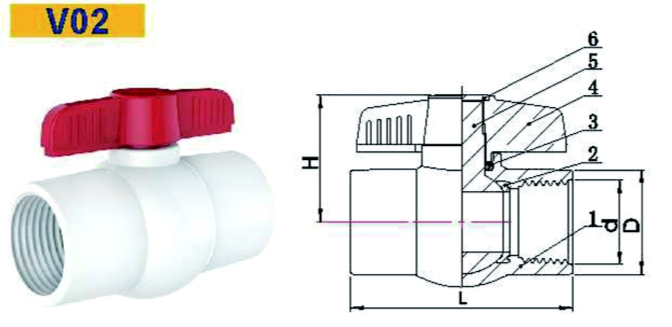

SPECIFITATIONS OF PVC Compact Thread Ball Valve V02
NO. | PART | MATERIAL | QUANTITY |
1 | Body | PVC | 1 |
2 | Seat Seal | TPE/TPR | 2 |
3 | O-Ring | NBR/EPDM | 1 |
4 | Handle | ABS | 1 |
5 | Valve Core | PVC | 1 |
6 | Cap | ABS | 1 |
Size | NPT | BSPT | L | H | H |
mm | Thd./in | Thd./in | mm | mm | 33 |
15(1/2") | 14 | 14 | 74 | 43.0 | 30.. |
20(3/4") | 14 | 14 | 84 | 50.6 | 34.5 |
25(1") | 11.5 | 11 | 98.4 | 56.8 | 42.5 |
32(1-1/4") | 11.5 | 11 | 110 | 63.5 | 52.0 |
40(1-1/2") | 11.5 | 11 | 127 | 70.8 | 61.8 |
50(2") | 8 | 11 | 148 | 81.5 | 75.2 |
63(2-1/2") | 8 | 11 | 178.8 | 97.0 | 93.3 |
80(3") | 8 | 11 | 210 | 103 | 106.1 |
110(4") | 8 | 11 | 260.6 | 140 | 134.4 |
