Place of Origin: Zhejiang,China (Mainland)
Material: 100% new raw materials PP-R
Brand Name: CXM or OEM
Working Medium: Water
Working Pressure: 2.50MPa
Working Temperature: 95℃
Equipment: Plastic injection molding machine
MOQ: 5 cartons
Delivery Time: Within 30 days
Trade Term: FOB, CFR
Payment Term: L/C,T/T
Means of Transport: Land,Ocean,Air
Port of Loading:Ningbo or Shanghai
Services Life: More than 50 years
Export Area:All over the world

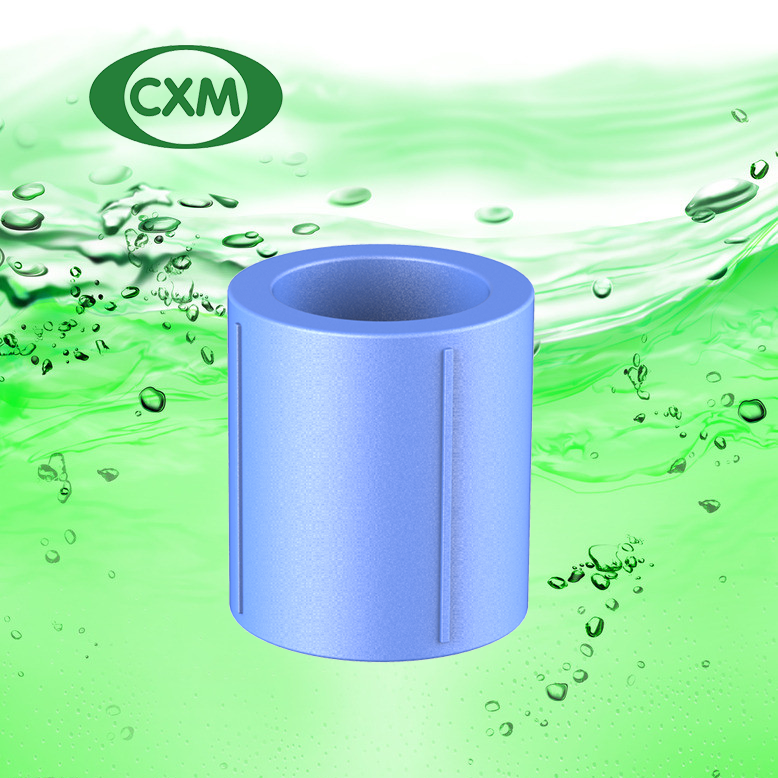

Blue Color PPR Socket/Coupling Pipe Fittings Features & Advantages:
1. Sanitization & Non-poison: This product is green building material which is able to use for pure clean drinking water pipe system. No heavy metal additives would not be covered with dirt or contaminated by bacterium.
2. High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius.
3. Corrosion-Proof & Non-Fouling: Resist chemical matters or electron chemical corrosion. Able to avoid the pipe's fouling or blocking as well as the blemish, rust on basin and bath.
4. Beautiful Appearance & Higher Flow Capacity:Smooth inner and outer surfaces, less flowing resistance, soft color and beautiful figure.
5. Easy and Reliable Installation: Using heat melting joint without sleeve wire, and taking few seconds for connecting and adopting good quality copper inserts to connect the metal pipe and basin.
6. Long Using Life: ppr male coupling for pipe fitting can be used for over 50 years under normal condition.
7. ppr female coupling for pipe fitting is recyclable and environmental friendly.
|Size (mm)||Pcs/Carton||Carton Size||MOQ (Cartons)|
We are professional manufacturer specializing in producing PP-R pipes,PP-R fittings and PPR Valves since 1998,we are a leading supplier for water systerm and heating systerm certified by EN ISO 9001:2008,and our products performed German standard DIN8077/8078.ODM and OEM both are available,the high quality and best service will be offered.
If you are interested in any products, please feel free to contact us for more information at anytime.
PP-R pipes and fittings should be connected through thermal melting or electric meltling, relevant set of welding machine or tool is supplied by us. Pipe installation and operation must comply with relevant technology regulation and usage requirement for welding machine tool.
CXM brand PP-R pipe can not directly be connected to sanitary ware, metal pipe and fittings,valves,relevant accessories, but via PP-R metal threaded fittings or flange.
Welding Key Point:
Cut the part of pipe at right angle to pipe axis with pipe cutter, take care that pipe axis is free from burrs or cutting chips and remove if necessary.
Do not start operation until green ligh is on.
Welding parts of pipes and fittings must be kept dry, cleanness, no oil.
Marking welding depth at end of pipe and fittings with proper pen and measure in accordance with following table.
After stipulates the heating time, quickly remove pipe and fittings from welding die, jointing them immediately with average and without truning until the marked depth is bead of PP-R from the fitting.
Joint element have to be fixed during the specified assembly time. use time to correct the connection. The connection is only restricted to the aligrement of pipe and fittings. Never turn the elements or align the connection after the processing time.
|Dimension (mm) ||Welding Depth (mm) ||Heating Time (s) ||Welding Time (s) ||Cooling Time (min) |
|16 ||13.0 ||5 ||4 ||2 |
|20 ||14.0 ||5 ||4 ||2 |
|25 ||15.0 ||7 ||4 ||2 |
|32 ||16.5 ||8 ||6 ||4 |
|40 ||18.0 ||12 ||6 ||4 |
|50 ||20.0 ||18 ||6 ||4 |
|63 ||24.0 ||24 ||8 ||6 |
|75 ||26.0 ||30 ||8 ||8 |
|90 ||29.0 ||40 ||8 ||8 |
