PE electrofusion welding machine HDM315
Place of Origin: Zhejiang,China (Mainland)
Operating Range: DN20~DN315
Input Voltage: 190V~240V
Output Power: 3000W
Output Voltage: 10V~48V
Frequency: 40HZ~60HZ
Time Adjust Rage: 1~9999 seconds
Time Deviation: ≦1%
Relative Humidity: ≦80%
Control Type: Constant Current/Constant Volt
Packing: Wooden Box
Export Area: All over the world
MOQ: No limited
Payment Term: L/C, T/T
Trade Term: FOB, CFR
Delivery Time: within 45 days
Means of Transport: Land, Ocean, Air
| Quantity: | |
|---|---|
-
HDM315
-
CXM or OEM or without brand

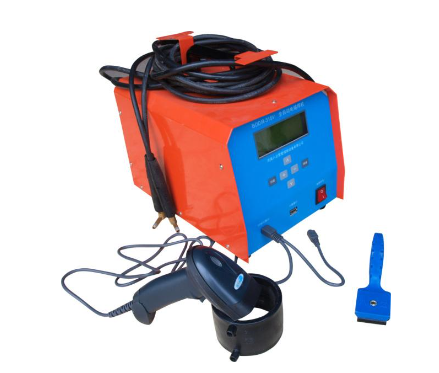

PE Electrofusion Welding Machine HDM315
***Brief:
Electrofusion welding machine is suitable for connectiong PE pipes and fittings with coupling which are used for water,oil and gas.
***Feature:
Designed according to ISO9001:2008 electro fusion welder international standard.
High level MCU is used as control core, equipped with LCD display, all welding parameters could be displayed.
Ligh weight, easy operation.
By real-time monitoring weld status,abnormal welding process could be terminated in short time.
Built-in memort,can record more than 500 welding records.
Welding records could be download to USB flash disk via the USB interface (optional function).
Welding wiring is wasy and simple to avoid wiring error.
Weling parameters input modes: (1) Manually set; (2) Read in by bar code scanner.
***Technology Data:
| CODE: HDM200 | |||
| Welding Range | Input Voltage | Frequency | Output Power |
| 20mm ~ 200mm | 190V ~ 240V | 40HZ ~ 60HZ | 3KW |
| Output Voltage | Control Type | Time Adjust Range | |
| 10V ~ 48V | Constant Current/Control Volt | 1 ~ 9999 Seconds | |
| Time Deviation | Relative Humidity | Net Weight | |
| ≦1% | ≦80% | 20 kgs | |
| CODE: HDM315 | |||
| Welding Range | Input Voltage | Frequency | Output Power |
| 20mm ~ 315mm | 190V ~ 240V | 40HZ ~ 60HZ | 3KW |
| Output Voltage | Control Type | Time Adjust Range | |
| 10V ~ 48V | Constant Current/Control Volt | 1 ~ 9999 Seconds | |
| Time Deviation | Relative Humidity | Net Weight | |
| ≦1% | ≦80% | 20 kgs | |
| CODE: HDM500 | |||
| Welding Range | Input Voltage | Frequency | Output Power |
| 20mm ~ 500mm | 190V ~ 240V | 40HZ ~ 60HZ | 4KW |
| Output Voltage | Control Type | Time Adjust Range | |
| 10V ~ 48V | Constant Current/Control Volt | 1 ~ 9999 Seconds | |
| Time Deviation | Relative Humidity | Net Weight | |
| ≦1% | ≦80% | 25 kgs | |
PE Electrofusion Welding Machine HDM315
***Brief:
Electrofusion welding machine is suitable for connectiong PE pipes and fittings with coupling which are used for water,oil and gas.
***Feature:
Designed according to ISO9001:2008 electro fusion welder international standard.
High level MCU is used as control core, equipped with LCD display, all welding parameters could be displayed.
Ligh weight, easy operation.
By real-time monitoring weld status,abnormal welding process could be terminated in short time.
Built-in memort,can record more than 500 welding records.
Welding records could be download to USB flash disk via the USB interface (optional function).
Welding wiring is wasy and simple to avoid wiring error.
Weling parameters input modes: (1) Manually set; (2) Read in by bar code scanner.
***Technology Data:
| CODE: HDM200 | |||
| Welding Range | Input Voltage | Frequency | Output Power |
| 20mm ~ 200mm | 190V ~ 240V | 40HZ ~ 60HZ | 3KW |
| Output Voltage | Control Type | Time Adjust Range | |
| 10V ~ 48V | Constant Current/Control Volt | 1 ~ 9999 Seconds | |
| Time Deviation | Relative Humidity | Net Weight | |
| ≦1% | ≦80% | 20 kgs | |
| CODE: HDM315 | |||
| Welding Range | Input Voltage | Frequency | Output Power |
| 20mm ~ 315mm | 190V ~ 240V | 40HZ ~ 60HZ | 3KW |
| Output Voltage | Control Type | Time Adjust Range | |
| 10V ~ 48V | Constant Current/Control Volt | 1 ~ 9999 Seconds | |
| Time Deviation | Relative Humidity | Net Weight | |
| ≦1% | ≦80% | 20 kgs | |
| CODE: HDM500 | |||
| Welding Range | Input Voltage | Frequency | Output Power |
| 20mm ~ 500mm | 190V ~ 240V | 40HZ ~ 60HZ | 4KW |
| Output Voltage | Control Type | Time Adjust Range | |
| 10V ~ 48V | Constant Current/Control Volt | 1 ~ 9999 Seconds | |
| Time Deviation | Relative Humidity | Net Weight | |
| ≦1% | ≦80% | 25 kgs | |
