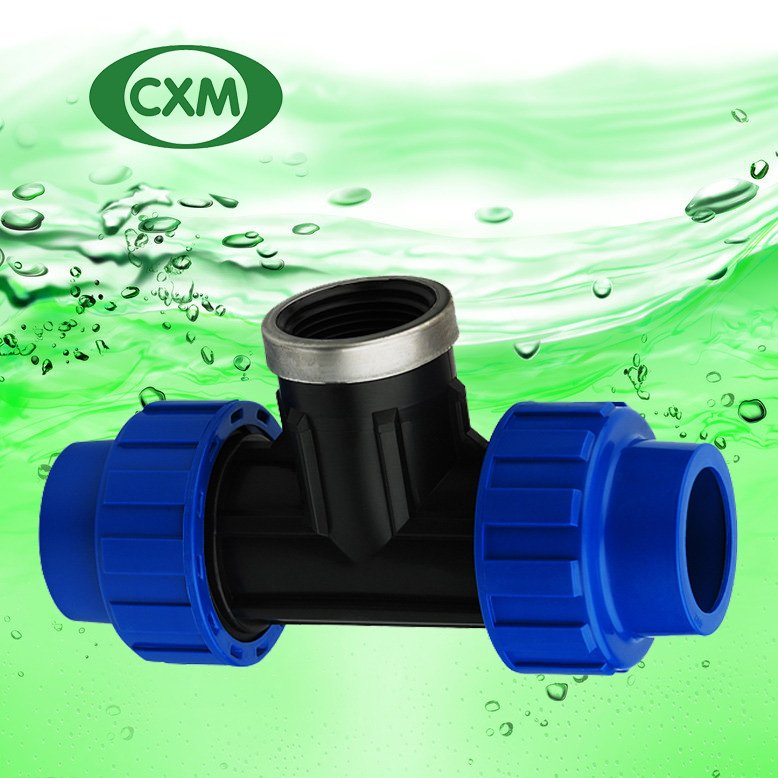

PP female threaded tee with steel ring PP1011

Material: PP
Working pressure: PN16
Size: 16mm to 110mm
Color: Blue, Black, Sky Blue
MOQ: 10 cartons per size
Prices: FOB, CNF, EX-WORK
Payment terms: L/C, TT
Export to all over the world
Process: Injection
Thread: Female BSP
Suitable for irrigation and garden

Quantity:
  • PP1011
  • CXM

PP Equal Tee With Female Thread

***FIELDS OF APPLICATION

PP compression fittings and clamp saddles are designed specifically for cinnecting polyethylene pipes with an outside diameter of 16-110mm (135mm for clamp saddles). They are fully compatible with all PELD,PEHD,PE40,PE80 and PE100 pipes complying with EN12201,ISO4427,ISO14236,ISO13460,DIN8074. They are normally used to convey drinking water and fluids at pressure up to 16 bar for generic applications.The quality of the material used makes these fittings resistant to etching by numerous chemical substances and to UV-rays. The PP universal fitting can b e used to connect systems using PE metric piping with existing pipes made of any material,with external diameters of 15-34mm.

***STANDARDS

1.Fittings and saddles

Complying with UNI 9561,UNI 9562,Din 8076-3,ISO 14236,ISO 13460

2.Threads

Complying with ISO7/1,DIN 2999,BS 21

3.Flanges

Complying with UNI 2278,DIN 8063


***OPERATING TEMPERATURES

PP Fittings and clamp saddles are not suitable for use with hot water for the limits dictated by the use of polyethylene pipes.

Maximum operating temperatures refer to the use of polyethylene pipes; it is therfore necessary to refer to the regulations applicable in the country of use. The fittings and clamp saddles can with stand temperatures below 0ºC. The table below shows the maximum operating pressure during continuous operation (PFA) with changes in temperature if the liquid converyed is water,in compliance with EN 805,EN 12201 and ISO 13761. For values falling within the set range,alinear interpolation can be obtained.

Operating T (ºC)≤20ºC25ºC30ºC35ºC40ºC45ºC
PFA (bar)1614.913.912.811.810.8
PFA (bar)109.38.787.46.7

***TENSILE STRENGTH

All fittings under go tensile strength tests with the loads shown in the table blow,in compliance with the strictest standards and regulations.

PIPE PE 100-PN16
Φ(mm)F(N)F(kgf)
1683385
201225125
251774181
322950301
404557465
507076722
63112501148
75157191604
90
227362320
110338983459

***SPECIFICATIONS

D(mm)F(BSP)PCS/CTNMOQ(CTNS)MOQ(PCS)
20G 1/2"F120101200
20G 3/4"F120101200
25G 1/2"F8010800
25G 3/4"F8010800
32G 3/4"F4810800
32G 1"F4810480
40G 1"F3210320
40G 1-1/4"M3210320
50G 1-1/2"M1810300
63G 2"M1010120
75G 2-1/2"M61060
90G 3"M61060
110G 4"M41040
