HDPE pipes for water,oil,gas

Place of Origin: Zhejiang,China (Mainland)
Brand Name: CXM or OEM
Specification: DN20-DN1600
Length: 6m,9m,12m
Thickness: International standard
Standard: ISO4427,GB/T 13663-2000
Working Medium: Water,Oil,Gas
Working Pressure: SDR41,SDR33,SDR26,SDR21,SDR17,SDR13.6,SDR11
Working Temperature: 45℃
Connector: Welding
Color: Black,Yellow,Orange,Blue
Material: 100% imported raw material
MOQ: 1000Meters
Export Area: All over the world
Working Life: more than 50 years
Trade Term: FOB,CFR
Payment Term:L/C, T/T
Means of Transport: Land,Ocean,Air

Quantity:
  • CXM or OEM or without brand

HDPE Pipes for Water,Oil,Gas

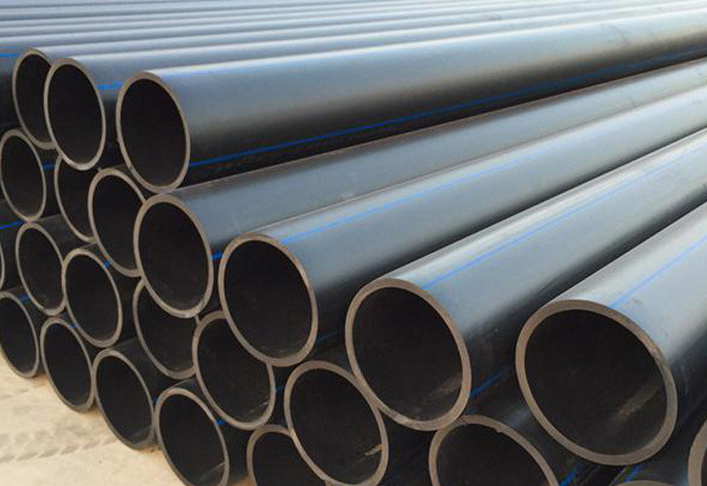

V)%H0Y%PM{0I)@OHHRT@20

1.Application Areas:

> Municipal and industrial water transmission systems.

> Potable water service or distribution lines.

> Sewer piping systems.

> Pipeline rehabilitation.

> Slip lining.

> Natural gas distribution.

> Irrigation and landscaping

2.Product features

***Corrosion Resistance

HDPE pipes and fittings have excellent resistance against electrolytic or galvanic corrosion or any known corrosive soil or water condition. HDPE is also characterized by highly abrasion resistance.

***High Flow Capacity

HDPE pipes have a smooth internal surface which ensures less drag and a lower tendency for turbulence at highflow. Its superior flow characteristic eliminates scaling and pitting and guarantees consistent flow through out the pipe's entire service life.

***Low Installation Cost

HDPE pipes are lightweight,flexible,and produced in long lengths,which results in easier and convenient installation. The flexible nature of the polythylene pipes reduces the use of bends.

Alternate installation methods such as Directional Drilling,Pipe Building,Slip Lining,Plough and Plant,Submerged or Floating Pipe,etc. can save considerable time and money in most potable water applications.

***Easy Maintenance

CXM brand polyethylene pipes are maintenance free with a desigh life of over 70 years under normal operating conditions. PE pipes offer long-term resistance to avariety of service conditions such as:abrasion,temperature and soil movements,bending,weathering,internal pressure,direct burial,point loading and squeeze-off.

***Easy Handling

Polyethylene is about one-eighth the density of steel and thus does not require the use of heavy lifting equipment for installation.

***High Impact Strength

Polyethylene pipe is able to structurally withstand a higher impact than equivalent rigid pipes,especially during cold weather installations when other materials are more prone to cracks and impact failure.

Slow crack growth is the primary cause of most pipe failures and this is primarily investigated by third party damage during the installation process. The advanced polyethylene material used by XUMING INDUSTRY CO., LIMITED in its production process provides a highly resistance base to prevent fatigue and slow crack growth.


3.The mainly physical properties of HDPE pipes for water,oil and gas:

SDR SDR41 SDR33 SDR26 SDR21 SDR17 SDR13.6 SDR11 SDR9
Material Pressure: MPa
PE80 0.32 0.40 0.50 0.60 0.80 1.00 1.25 1.60
PE100 0.40 0.50 0.60 0.80 1.00 1.25 1.60 2.00
Diameter (dn:mm) Wall Thickness (mm)
20 ----- ----- ----- ----- ----- 1.60 1.90 2.30
25 ----- ----- ----- ----- 1.60 1.90 2.30 2.80
32 ----- ----- ----- 1.60 1.90 2.40 2.90 3.60
40 ----- ----- ----- 1.90 2.40 3.00 3.70 4.50
50 ----- ----- 2.00 2.40 3.00 3.70 4.60 5.60
63 ----- ----- 2.40 3.00 3.80 4.70 5.80 7.10
75 ----- 2.30 2.90 3.60 4.50 5.60 6.80 8.40
90 ----- 2.80 3.50 4.30 5.40 6.70 8.20 10.10
110 2.70 3.40 4.20 5.30 6.60 8.10 10.00 12.30
125 3.10 3.90 4.80 6.00 7.40 9.20 11.40 14.00
140 3.50 4.30 5.40 6.70 8.30 10.30 12.70 15.70
160 4.00 4.90 6.20 7.70 9.50 11.80 14.60 17.90
180 4.40 5.50 6.90 8.60 10.70 13.30 16.40 20.10
200 4.90 6.20 7.70 9.60 11.90 14.70 18.20 22.40
225 5.50 6.90 8.60 10.80 13.40 16.60 20.50 25.10
250 6.20 7.70 9.60 11.90 14.80 18.40 22.70 27.90
280 6.90 8.60 10.70 13.40 16.60 20.60 25.40 31.30
315 7.70 9.70 12.10 15.00 18.70 23.20 28.60 35.20
355 8.70 10.90 13.60 16.90 21.10 26.10 32.20 39.60
400
9.80 12.30 15.30 19.10 23.70 29.40 36.30 44.70
450 11.00 13.80 17.20 21.50 26.70 33.10 40.90 50.20
500 12.30 15.30 19.10 23.90 29.70 36.80 45.40 55.80
560 13.70 17.20 21.40 26.70 33.20 41.20 50.80 62.50
630 15.40 19.30 24.10 30.00 37.40 46.30 57.20 70.30
710 17.40 21.80 27.20 33.90 42.10 52.20 64.50 79.30
800 19.60 24.50 30.60 38.10 47.40 58.80 72.50 89.30
900 22.00 27.60 34.40 42.90 53.30 66.20 81.70 -----
1000 24.50 30.60 38.20 47.70 59.30 72.50 90.20 -----
1200 29.40 36.70 45.90 57.20 67.90 88.20 ----- -----
1400 34.40 42.90 53.50 66.70 82.40 102.90 ----- -----
1600 39.30 49.00 61.20 76.20 94.10 117.60 ----- -----
