PEX-b pipe XM1007
Place of Origin: Zhejiang,China (Mainland)
Material: 100% new materials PE-RT
Brand Name: CXM
Specification: DN16 ~ DN32
Length: As customers' request
Thickness: International standard
Standard: DIN8077/8078,GB/T18742
Working Medium: heating system
Working Pressure: PN10/PN12.5/PN16/PN20/PN25
Working Temperature: -40℃~95℃
Connector: Welding
Color: Green, Grey, White,Blue
MOQ: 3000Meters
Export Area: All over the world
Trade Term: FOB,CFR
Payment Term: L/C,T/T
Means of transport: Land,Ocean,Air
Delivery Time: Within 30 Days
| Quantity: | |
|---|---|
-

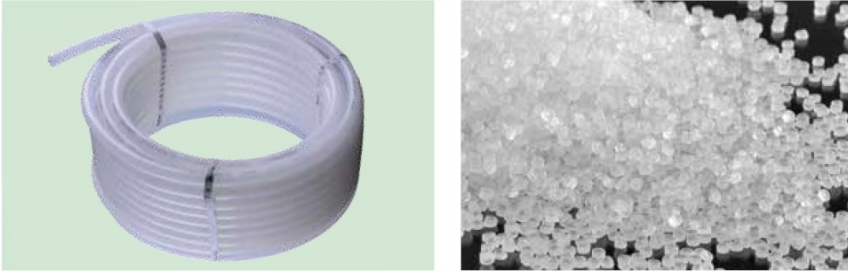

XM1007
-
CXM or OEM or without brand
PEX-b pipe is made from the polyethylene material, adopting the cross-linking technique to from the covalent bond between polyethylene molecular chains. It has excellent heat resistance and ourstanding mechanical and physical performance.
PEX-b Pipe Features:
◆ Outstanding quality, strong toughness and high internal pressure strength;
◆ With excellent corrosion resistance and environmental stess crack resistance, the product can deliver chemical fluids under high-temperature conditions;
◆ As the inner wall surface tension of the pipe is low, the water with high surface tension is difficult to soak into the inner wall, which can effectively avoid sacling;
◆ Due to smooth inner wall of the pipe, small fluid flow resistance, excellent hydraulic performance, the product has the larger fluid flow than the metal pipe.
◆ With flexbility and memory, the products shape can be restored after being heated;
◆ With light weight and convenient installation, the product is wasy to be delivered and carried out the construction;
◆ Under the normal conditions, the service life can be over 50 years.
Specification of PEX-b Pipes Series:
| Pictures | Name of Goods | Model NO. | Size (mm) |
 | PEX-b PIPE | XM1007-01 | 16x2.0 |
| XM1007-02 | 18x2.0 | ||
| XM1007-03 | 20x2.0 | ||
| XM1007-04 | 25x2.5 | ||
| XM1007-05 | 32x3.0 | ||
 | PEX EVOH PIPE | XM1007-06 | 16x2.0 |
| XM1007-07 | 18x2.0 | ||
| XM1007-08 | 20x2.0 | ||
| XM1007-09 | 25x2.5 | ||
| XM1007-10 | 32x3.0 |
