PPR-FB-PPR pipes for water XM1002

PP-R /Fiber Composite Pipe PN16/PN20/PN25

***Application Scope

▇ Residential cold and hot water piping;

▇ Piping for purified water or drinking water;

▇ Production and conveyance system for beverage and liquid medicament;

▇ Piping used for compressed air;

▇ Piping used for other industries and agriculture.

***Overview

PP-R pipe,also called random copolymerized polypropylene (type II) pipe, is a new generation of environment-friendly construction material developed in the 1990s. Besides plastic pipes' merits such as lightness,corrosion resistance,anti-deposition and long service life, PP-R pipe also enjoy some other advantages,like hygienicness,heatresistance and longer service life. Meanwhile, its coefficient of heat conductivity is quite low and it is good at hear preservation and energy conservation. Because of the technique of the thermosol binding, it is convenient to be installed and reliable in joints. Also, the material can be recycled. Therefore, it is worthy of the name environment-friendly construction material.

Compated with aluminum multiunit pipe,PP-R pipe can be made into tubular products with larger calibers, with the largest reaching more than 160mms in caliber. CXM brand PP-R pipes and fittings are widely used in such areas as delivery of drinking water, production agriculture, planting in gardens, parks and ranches, etc.

***Product Introduction:

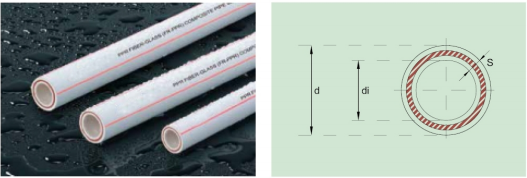

PPR Fiber-glass composite pipes  make use of 100% imported raw materials,and thus guarantee its product quality. This high-performance pipe is produced through multi-layer co-extrusion at low temperature and high speed by special technique and equipment. This pipe has 3 layers, in which the internal and external layer is made of PP-R materials, while the middle layer is stiffened and reinforced composite materials. PP-R materials of internal layer ensure the hygiene of this pipe, and reduces coefficient of linear expansin; PP-R materials of external layer facilitate its hot-melting and socket connection with traditional PP-R pipes.

***Color: green, white,gray

***Length: 4meters straight length or according to customers' requirement.

***Technology Data:

PPR-FB-PPR PIPE PN16/1.6MPa/16Bars
Size	Packing Quantity	Diameter	Thicknesss	Internal Diameter
mm	meters/bag	d (mm)	s (mm)	di (mm)
20x2.3mm	100m	20mm	2.3mm	15.4mm
25x2.8mm	60m	25mm	2.8mm	19.4mm
32x3.6mm	40m	32mm	3.6mm	24.8mm
40x4.5mm	28m	40mm	4.5mm	31.0mm
50x5.6mm	16m	50mm	5.6mm	38.8mm
63x7.1mm	12m	63mm	7.1mm	48.8mm
75x8.4mm	8m	75mm	8.4mm	58.2mm
90x10.1mm	4m	90mm	10.1mm	69.8mm
110x12.2mm	4m	110mm	12.2mm	85.6mm
PPR-FB-PPR PIPE PN20/2.0MPa/20bars
Size	Packing Quantity	Diameter	Thicknesss	Internal Diameter
mm	meters/bag	d (mm)	s (mm)	di (mm)
20x2.8mm	100m	20mm	2.8mm	14.4mm
25x3.5mm	60m	25mm	3.5mm	18.0mm
32x4.4mm	40m	32mm	4.4mm	23.2mm
40x5.5mm	28m	40mm	5.5mm	29.0mm
50x6.9mm	16m	50mm	6.9mm	36.2mm
63x8.7mm	12m	63mm	8.7mm	45.6mm
75x10.1mm	8m	75mm	10.1mm	54.8mm
90x12.3mm	4m	90mm	12.3mm	65.4mm
110x15.1mm	4m	110mm	15.1mm	79.8mm
PPR-FB-PPR PIPE PN25/2.5MPa/25Bars
Size	Packing Quantity	Diameter	Thicknesss	Internal Diameter
mm	meters/bag	d (mm)	s (mm)	di (mm)
20x3.4mm	100m	20mm	3.4mm	13.2mm
25x4.2mm	60m	25mm	4.2mm	16.6mm
32x5.4mm	40m	32mm	5.4mm	21.2mm
40x6.7mm	28m	40mm	6.7mm	26.6mm
50x8.3mm	16m	50mm	8.3mm	33.4mm
63x10.5mm	12m	63mm	10.5mm	42.0mm
75x12.3mm	8m	75mm	12.3mm	50.4mm
90x15.0mm	4m	90mm	15.0mm	60.0mm
110x18.3mm	4m	110mm	18.3mm	73.4mm
