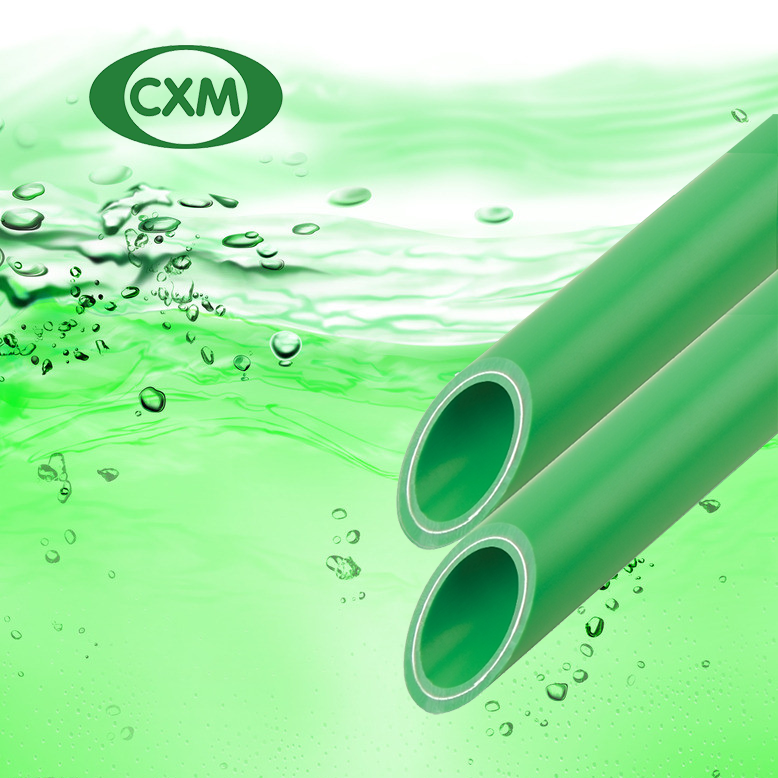

PPR-AL-PPR pipes for water XM1003

Place of Origin: Zhejiang,China (Mainland)
Material: 100% new materials PP-R and aluminum
Brand Name: CXM
Specification: DN20 ~ DN160
Length: As customers' request
Thickness: International standard
Standard: DIN8077/8078,GB/T18742
Working Medium: Cold and Hot Water
Working Pressure: PN10/PN12.5/PN16/PN20/PN25
Working Temperature: -40℃~95℃
Connector: Welding
Color: Green, Grey, White,Blue
MOQ: 3000Meters
Export Area: All over the world
Trade Term: FOB,CFR
Payment Term: L/C,T/T
Means of transport: Land,Ocean,Air
Delivery Time: Within 30 Days

Quantity:
  • XM1003
  • CXM or OEM or without brand

PPR-AL-PPR pipes for cold and hot water SDR11/SDR9/SDR7.4/SDR6

***Application Scope

▇ Residential cold and hot water piping;

▇ Piping for purified water or drinking water;

▇ Production and conveyance system for beverage and liquid medicament;

▇ Piping used for compressed air;

▇ Piping used for other industries and agriculture.


***Characteristics

◆ Resistance to high temperature and high pressure

◆ Resistance to erosion and the noiseless water hammer

◆ Smooth inwall guaranteeing the least resisting force and the largest amount of water

◆ The longevity of over 50 years

◆ Clean and hygienic and oxygen-proof

◆ Resistance to electrostatic and high ignition point

◆ Resistance to frost and earthquake-proof

◆ Flexural and no resilience

◆ Easily transferred and stored

◆ Few joints and lower leakage rate

◆ Easily installed yet applicable for numerous fields


***Overview

CXM aluminum plastic PP-R composite pipe comprises of five-layer mutual-extrueded stricture, interior layer is food degree PPR/PE-RT, exterior layout is of PP-R, middle one is of longitudinal superposition-welded aluminum layer, which isolates wach kind of liquid from penetration. It integrates in excellent high-temperature resistant performance for aluminum plastic composite pipe and less distortion after heated while having reliability for PP_R tubing thermal melting connection. So it preferably settles down shortcoming of higher cost for aluminum plastic composite tube joint and more linear expandability coefficient for PP-R tubing, its connection is the same as that of PP-R tubing.

***Color: green, white,gray

***Length: 4meters straight length or according to customers' requirement.

***Technology Data:

PPR-AL-PPR
PPR-AL-PPR PIPE
Size Packing Quantity Diameter Thicknesss Internal Diameter
mm meters/bag d (mm) s (mm) di (mm)
20x3.0mm 100m 20mm 3.0mm 14.0mm
25x3.5mm 60m 25mm 3.5mm 18.0mm
32x4.0mm 40m 32mm 4.0mm 24.0mm
40x5.0mm 28m 40mm 5.0mm 30.0mm
50x6.0mm 16m 50mm 6.0mm 38.0mm
63x7.0mm 12m 63mm 7.0mm 49.0mm
PPR-AL-PPR PIPES
Size Packing Quantity Diameter Thicknesss Internal Diameter
mm meters/bag d (mm) s (mm) di (mm)
20x3.4mm 100m 20mm 3.4mm 13.2mm
25x4.2mm 60m 25mm 4.2mm 16.6mm
32x5.4mm 40m 32mm 5.4mm 21.2mm
40x6.7mm 28m 40mm 6.7mm 26.6mm
50x8.3mm 16m 50mm 8.3mm 33.4mm
63x10.5mm 12m 63mm 10.5mm 42.0mm
